Heating elements power the heart of any muffle furnace, much like an engine drives a vehicle—dictating efficiency and longevity. From resistance wire to silicon carbide (SiC) or molybdenum disilicide (MoSi₂), these components inevitably degrade under heat, oxidation, or misuse. Delaying assessment risks sluggish ramps, erratic temps, failed runs, or ruined samples.
CVSIC outlines clear indicators, diagnostic steps, and upkeep tips to keep your operations running smoothly.
Key Indicators of Heating Element Degradation
Spotting wear early saves time and resources. Drawing from extensive field experience, here are the telltale signs:
Slower Ramp RatesSigns
Heat-up times stretch out—e.g., from 30 minutes to 1000°C to 45+ minutes.
Causes: Oxidized resistance wire hikes resistance; SiC builds insulating oxide layers; MoSi₂ suffers micro-fractures.
Temperature Instability or ShortfallsSigns
Swings beyond ±5°C, or failure to hit targets (e.g., set 1400°C but peaks at 1300°C).
Causes: Fading output from fractured wires, aged SiC, or compromised MoSi₂ sections.
Unusual Noises or SparksSigns
Acrid odors, smoke, flashes, or “popping” during operation.
Causes: Loose connections or breaks in resistance wire; cracks in SiC rods; brittle snaps in MoSi₂. Safety First: Power down immediately if sparks appear—consult a pro to mitigate risks.
Visible Alterations
Resistance Wire: White/green oxide buildup, warping, or snaps.

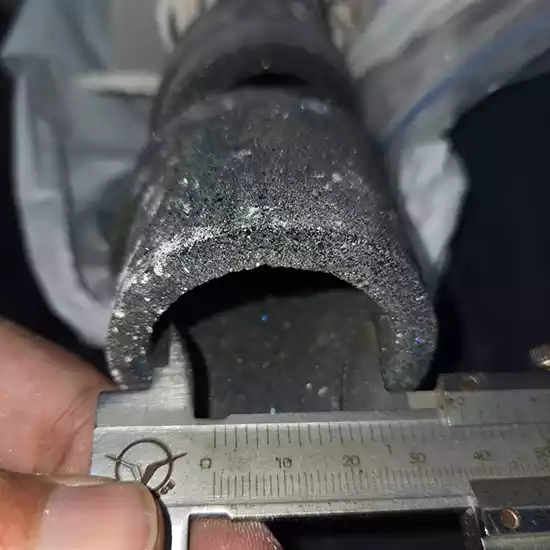

SiC: Thick gray-white SiO₂ coating, fissures, or splits.

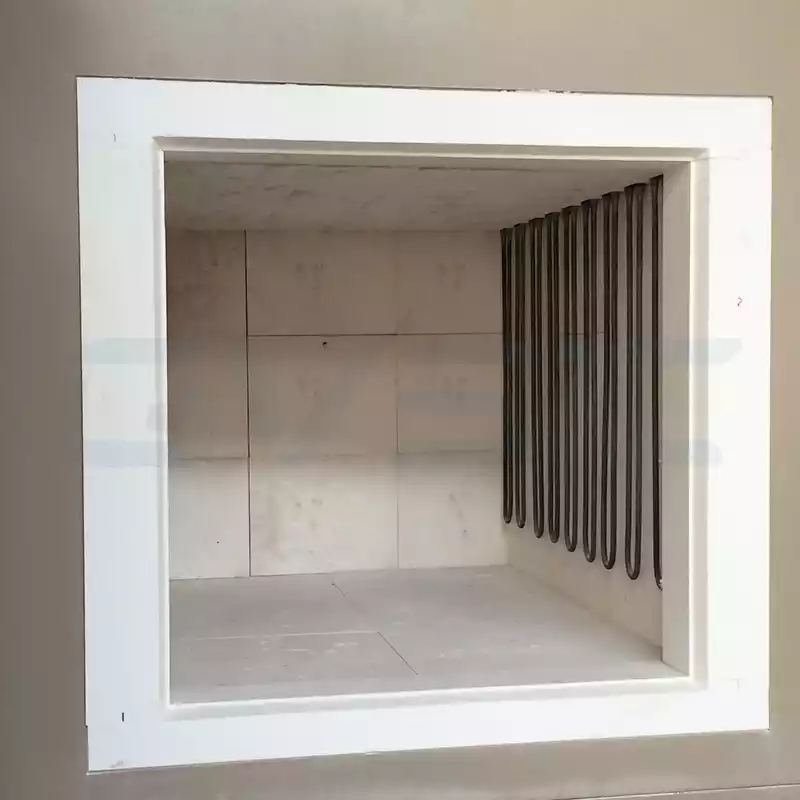

MoSi₂: Dull patina, hairline cracks, or bent U-shapes.
Rising Energy DemandsSigns
Spiking power bills for identical processes.
Causes: Diminished efficiency forces higher draws to hold temps.
Step-by-Step Inspection Protocols
Combine visual checks with metrics for confident decisions. These straightforward routines require minimal tools:
Visual Assessment
Cool and de-energize, then inspect surfaces.
Resistance wire: Scan for melts, breaks, or heavy scaling.
SiC: Probe for fissures or excessive glazing.
MoSi₂: Check U-bends for warps, splits, or discoloration.
Essentials: Flashlight and loupe for close-ups.
Resistance Verification
Multimeter against baseline specs from your manual.
Resistance wire: >20% rise signals swap-out.
SiC: 30–50% drift means it’s toast.
MoSi₂: Even 10% shifts warrant deeper dives.
Pro Tip: Always isolate power; CVSIC support offers virtual walkthroughs.
Heat-Up Performance Test
Execute a benchmark cycle (e.g., ambient to 1000°C); log ramp duration and thermal steadiness.
Red Flags: >20% longer heat-up or deviations >±5°C signal potential element swap.
Power Consumption AnalysisProcedure
Cross-check current usage against baselines (via CVSIC’s integrated logs).
Indicators: 15–20% spikes often trace to fading efficiency.
Spotlight Case: A ceramics operation’s CVSIC 1400°C unit logged 25% surges—diagnosed as worn SiC rods. Post-replacement, consumption normalized, restoring cost-effective runs.
Purchase high-quality muffle furnaces from Chinese muffle furnace manufacturers
Tailored Replacement Thresholds by Element Type
Aging patterns vary, so we’ve benchmarked specifics:
Resistance Wire
- Triggers: Fractures, >50% oxide veil, >20% resistance creep, >30% ramp lag.
- Expected Life: 500–1,000 hours (temp/frequency dependent).
- Notes: Budget-friendly swaps; CVSIC’s MF-1200 series allows 10-minute installs.
SiC
- Triggers: >2mm oxide buildup, cracks/breaks, >30% resistance gain, >20% rate drop.
- Expected Life: 2,000–5,000 hours; humidity cuts this short.
- Notes: Wiring finesse required; grab CVSIC kits and guides for seamless service.
MoSi2
- Triggers: U-shape failures, bends, heavy darkening, >10% resistance shift, sub-1700°C limits.
- Expected Life: 3,000–8,000 hours; dips above 1700°C.
- Notes: Brittle handling demands care; CVSIC’s remote diagnostics and swaps streamline it.
Key Cautions:
- Resistance wire sheds Cr₂O₃ flakes.
- SiC’s SiO₂ glaze fissures under prolonged heat.
- MoSi₂ resists well but risks “low-temp oxidation” below 600°C.

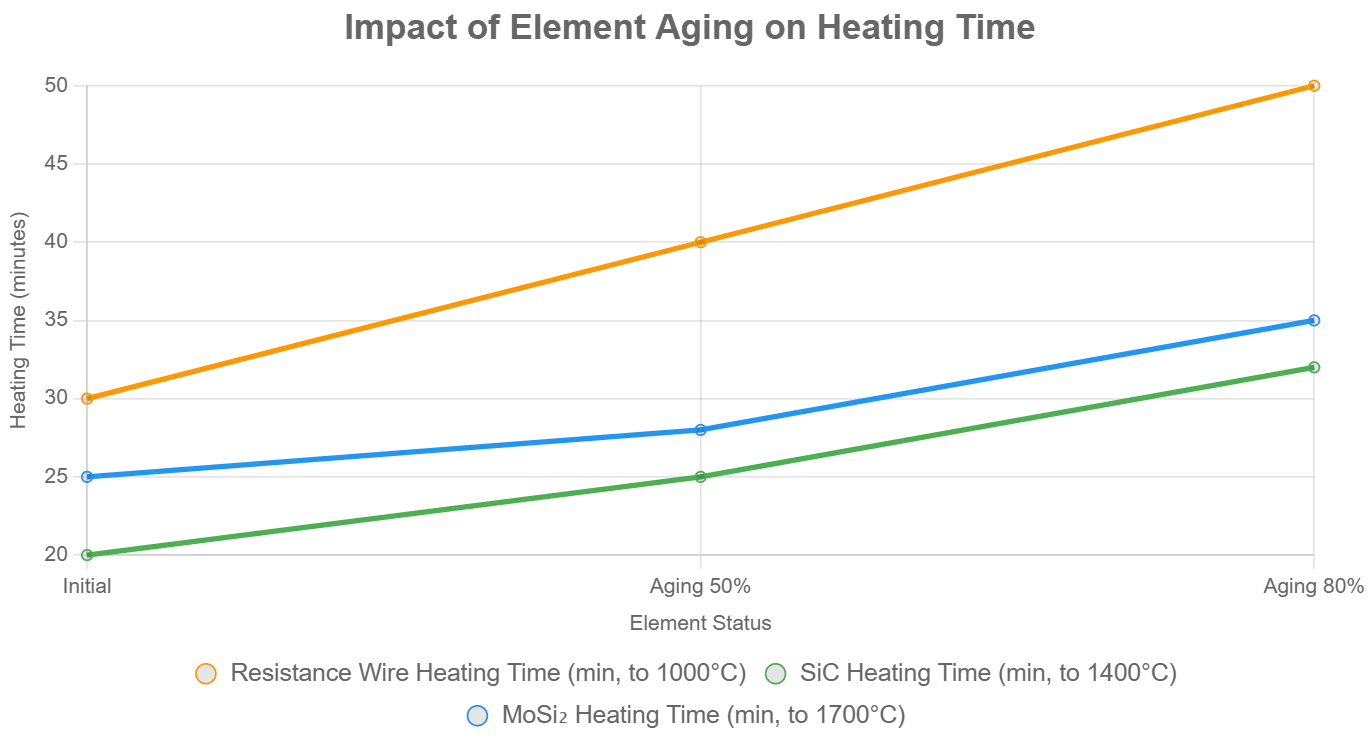

Performance Impacts of Aging
The following shows the effect of component aging on heating time, based on CVSIC experimental data:
Proven Strategies to Prolong Element Life
Prevention trumps repair. Implement these for sustained value:
- Temper Ramps: Cap at 10°C/min to ease stress; CVSIC’s programmable curves make it effortless.
- Humidity Control: Pre-dry chambers—SiC and MoSi₂ hate moisture.
- Routine Purges: Brush away residues to shield against corrosion.
- Stay Within Limits: Honor maxes (1200°C wire, 1600°C SiC, 1800°C MoSi₂).
- Scheduled Scans: Quarterly resistance/visual logs; smart CVSIC units auto-alert.
In Summary
Spotting the need for muffle furnace heating element replacement boils down to monitoring ramp rates, thermal consistency, visual cues, and power spikes. Resistance wire demands more frequent swaps but stays budget-friendly; SiC and MoSi₂ offer superior endurance with targeted professional care.
Routine diagnostics and smart operation unlock peak longevity from CVSIC furnaces, delivering seamless R&D and production flows. Contact CVSIC specialists for personalized guidance and bespoke maintenance plans—keeping your high-temperature workhorse performing at its best.
