Vertical vs. Horizontal Tube Furnaces: Choosing the Right Equipment for Your Needs
When selecting tube furnaces for materials research or heat treatment, you often ask: Should you choose a vertical or horizontal design?
The answer depends on your application and preferences; neither type is superior. CVSIC compares both, analyzing structure, use, pros, and cons, backed by case studies. This guide offers practical selection insights for researchers and engineers.
Structural and Placement Differences
Vertical Tube Furnace
- Features a vertically oriented heating tube, allowing samples to be loaded from the top or bottom, similar to a “standing” tube.
- Its primary advantage is a compact footprint, ideal for space-constrained laboratories.
- The natural rise of hot air creates a temperature gradient, making it particularly effective for crystal growth or gravity-assisted processes.
Horizontal Tube Furnace
- Utilizes a horizontally positioned heating tube, with samples placed in quartz boats or crucibles.
- Facilitates continuous boat pushing, easy sample loading, and real-time observation.
- Well-suited for batch experiments and rapid operational workflows.
In Brief: Vertical furnaces prioritize stability, while horizontal furnaces emphasize flexibility.

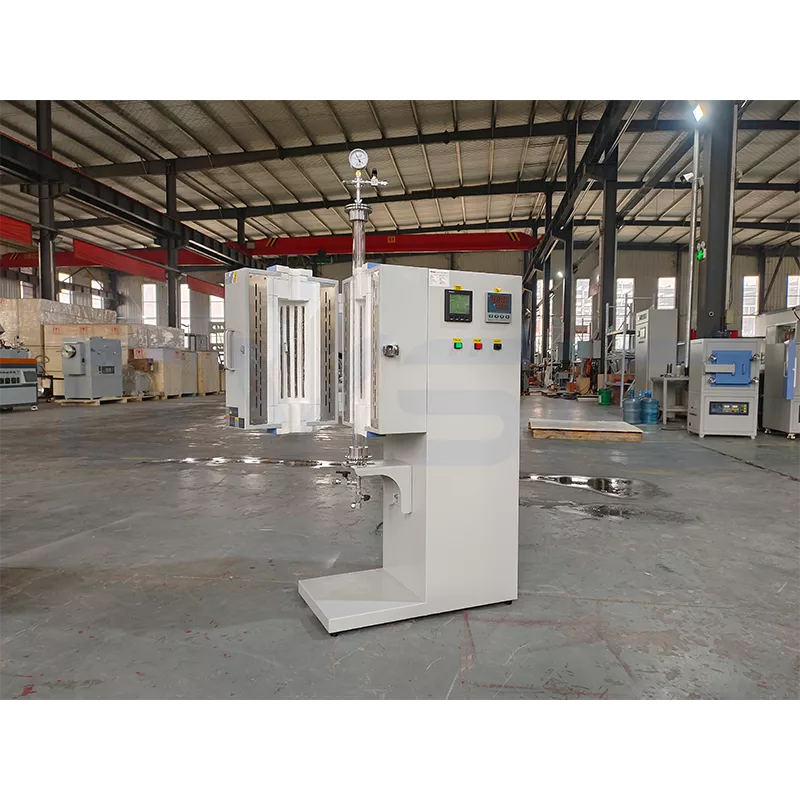

Vertical Tube Furnace: Compact Design for Precision Vertical Heating
Advantages of Vertical Tube Furnaces
- Space-Efficient: With valuable lab bench space at a premium, the vertical design occupies minimal room. For example, CVSIC helped a university lab integrate a vertical furnace into a cramped workspace, resolving their spatial constraints.
- Temperature Gradient: The vertical structure concentrates heat at the top, making it ideal for experiments that require thermal gradients, such as the growth of single-crystal materials.
- Low Maintenance: The vertical tube’s uniform stress distribution minimizes thermal expansion damage. CVSIC’s vertical furnaces include user-friendly maintenance interfaces for easy upkeep.
Disadvantages of Vertical Tube Furnaces
- Complex Sample Handling: Vertical loading requires careful operation, particularly with top-loaded samples, to prevent spills. A beginner’s oversight in securing the sample boat can lead to costly mishaps.
- Limited Sample Size: Smaller tube diameters restrict the furnace to smaller samples.
Ideal Applications
- Crystal growth (e.g., oxide single crystals or semiconductor materials)
- Small-scale laboratories or budget-conscious teams
- Experiments requiring temperature gradients (e.g., thermoelectric material studies)
Purchase high-performance tube furnaces from Chinese tube furnace manufacturer

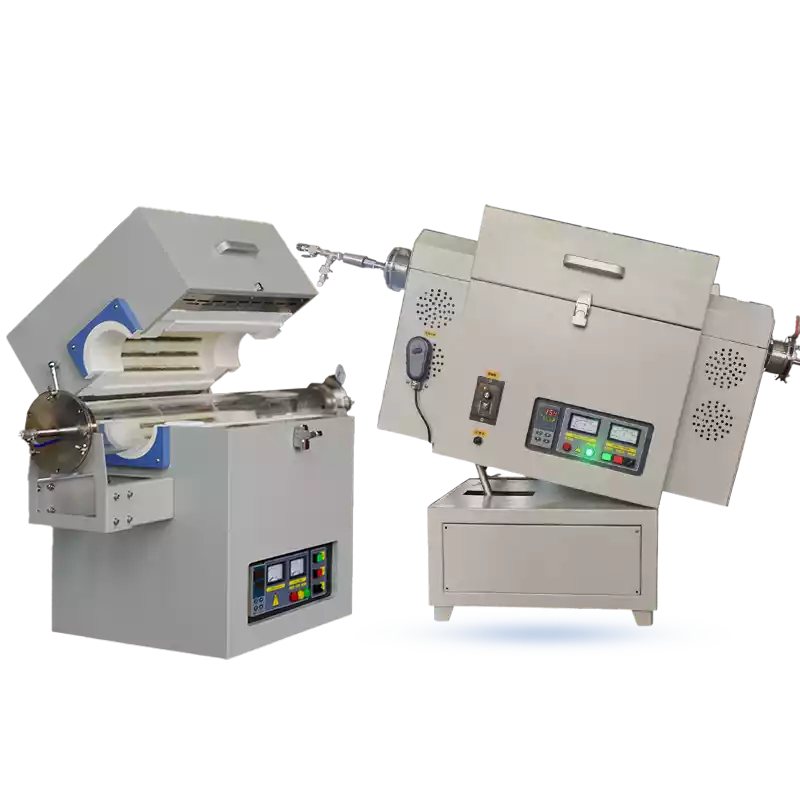

Horizontal Tube Furnace: The Versatile, User-Friendly Standard
Horizontal tube furnaces, the ‘workhorse’ of the tube furnace family, have a tube placed horizontally, with samples loaded or removed from one side. This intuitive and widely used design supports many high-temperature experiments.
Advantages of Horizontal Tube Furnaces
- User-Friendly Operation: Horizontal loading and unloading are straightforward, ideal for frequent use. In industrial settings, this ease of use boosts worker efficiency.
- Uniform Heating: Optimized heating elements ensure consistent temperature distribution, making them perfect for experiments such as annealing or sintering that require high uniformity.
- Sample Versatility: With a wide range of tube lengths and diameters, these furnaces accommodate larger samples. CVSIC offers customizable options to meet diverse requirements.
Disadvantages of Horizontal Tube Furnaces
- Larger Footprint: Horizontal furnaces require more bench space than vertical models, which may necessitate adjustments to the lab layout.
- No Natural Gradient: Their uniform temperature distribution lacks the natural gradient of vertical furnaces, requiring multi-zone models for gradient-dependent experiments.
Ideal Applications
- General heat treatment (e.g., annealing, sintering, quenching)
- Large samples or batch processing
- Processes requiring frequent sample handling (e.g., CVD thin film preparation)
Vertical vs. Horizontal Tube Furnaces: A Comparative Overview
| Space Occupation | Compact, ideal for labs | Larger footprint |
| Temperature Uniformity | Excellent in vertical direction, gravity-assisted | Consistent horizontally, with stricter airflow control needs |
| Operational Convenience | Stable loading, but sampling requires tools | Intuitive loading/unloading, ideal for frequent operations |
| Sample Adaptability | Best for powders, sedimentation experiments | Suited for solid blocks, boat pushing, continuous sampling |
| Expandability | Supports rotation mechanisms, but complex | Easily accommodates vacuum, fast-cooling, or continuous sampling modules |
| Applications | Crystal growth, powder sintering, research-focused experiments | Material R&D, atmosphere processing, production-oriented workflows |
| Cost Factors | Moderate for standard models, higher for large or multi-zone customization | Highly expandable, with cost-effective scalability |
Cost and Customization
- Vertical Tube Furnace: Compact and suited for focused experiments, but large or multi-zone customizations can increase costs.
- Horizontal Tube Furnace: Offers a flexible design for integrating modules such as vacuum, rotation, or fast cooling, providing cost-effective scalability.
At CVSIC, we specialize in custom solutions. For instance, clients have requested “vertical tube furnaces with rotation mechanisms” for uniform powder reactions or “horizontal tube furnaces with fast-cooling modules” to accelerate material development.
Selection Guidance
To choose the right furnace, consider these factors:
- Prioritize Experimental Stability: Opt for a vertical furnace.
- Focus on Operational Efficiency and Frequency: Choose a horizontal furnace.
- Limited Lab Space: Vertical furnaces are the better choice.
- Need for Expandable Features: Horizontal furnaces offer greater flexibility.
- Specialized Processes with Ample Budget: Explore customized solutions (CVSIC supports OEMs and ODMs).
In Summary:
- For research-driven, stability-focused applications, select a vertical furnace.
- For production-oriented, efficiency-driven workflows, choose a horizontal furnace.
FAQ
Which is more energy-efficient, vertical or horizontal tube furnaces?
Vertical furnaces, with their smaller thermal mass and faster heating, are generally more energy-efficient. However, efficiency depends on usage frequency and insulation duration. CVSIC optimizes both furnace types for minimal energy consumption.
Can vertical tube furnaces handle large samples?
Their smaller tube diameters are suitable for compact samples. For larger samples, horizontal furnaces are preferable, with CVSIC offering customized large-diameter tubes.
Are horizontal tube furnaces suitable for crystal growth?
Yes, but they lack the natural temperature gradient of vertical furnaces. For gradient-dependent experiments, CVSIC’s multi-zone horizontal furnaces are recommended.
How challenging is sample handling in vertical furnaces?
Securing the sample boat is essential to prevent spills. CVSIC provides specialized fixtures and user-friendly guides to simplify the process for beginners.
What is the best furnace for university labs?
Space-constrained labs with limited budgets benefit from the simplicity and compactness of vertical furnaces. High-throughput labs should opt for horizontal furnaces for greater efficiency. CVSIC’s tailored selection services ensure the perfect fit.
