Ceramic Fiber Cloth

CVSIC Ceramic Fiber Cloth Description

CVSIC Ceramic Fiber Cloth is made from high-purity ceramic fiber yarn, reinforced with glass fiber or alloy steel wire, and manufactured using advanced textile processes. The product features high strength, excellent flexibility, and superior processing performance, while combining high-temperature thermal insulation properties with the flexibility of ordinary textiles.

Ceramic fiber cloth can withstand temperatures up to 1260°C and can be used long-term in oxidizing or neutral atmospheres (glass fiber reinforced up to 650°C, steel wire reinforced up to 1050°C). It is widely used in industrial furnace curtains, pipe insulation, cable protection, and high-temperature sealing applications. The product contains no organic binders, has strong chemical stability, and can resist most corrosive chemicals, making it suitable for harsh industrial environments.

CVSIC Ceramic Fiber Cloth Advantages

• Excellent thermal insulation performance: Low thermal conductivity (0.130 W/m·K @ 580°C), significantly reducing energy consumption.
• High mechanical strength: Reinforced with glass fiber or steel wire, providing excellent tensile strength and thermal shock resistance.
• Corrosion resistance: Resistant to corrosion from acids, oils, steam, and other chemicals, suitable for harsh environments.
• Flexibility and processability: Smooth surface, flexibility, easy to cut, sew, and process.
• Lightweight and durable: Density 500–650 kg/m³ is lightweight and highly durable.
• Environmentally friendly and safe: Low organic content (≤15%), no harmful gas emissions at high temperatures.

CVSIC Ceramic Fiber Cloth Applications

CVSIC ceramic fiber cloth is widely used in the following fields:

• Industrial furnace curtains: Thermal insulation curtains for high-temperature industrial furnaces to reduce heat loss.
• Pipe insulation: Insulation wrapping for high-temperature pipes and containers to improve energy efficiency.
• Cable and fuel pipe protection: Provides insulation and fire protection for cables and fuel pipes.
• Sealing connections: Used for flange connections, furnace doors, and flexible expansion joints.
• Special protection: Used as material for high-temperature work safety clothing to provide safety protection.

Customization Services

CVSIC offers comprehensive customization services for ceramic fiber cloth to meet your specific needs:

• Specification customization: Available in widths (1000/1500 mm) and thicknesses (1.5–6 mm), with customizable lengths and shapes as required.
• Reinforcement material selection: Supports glass fiber (temperature resistance up to 650°C) or steel wire reinforcement (temperature resistance up to 1050°C) to meet different strength and temperature resistance requirements.
• Processing support: Cutting, sewing, or lamination processing is available to suit specific application scenarios.
• Packaging customization: Packaging options include cardboard boxes or woven bags to meet bulk transportation and storage requirements.

Technical support: A professional team provides selection recommendations, installation guidance, and application support to ensure optimal performance.

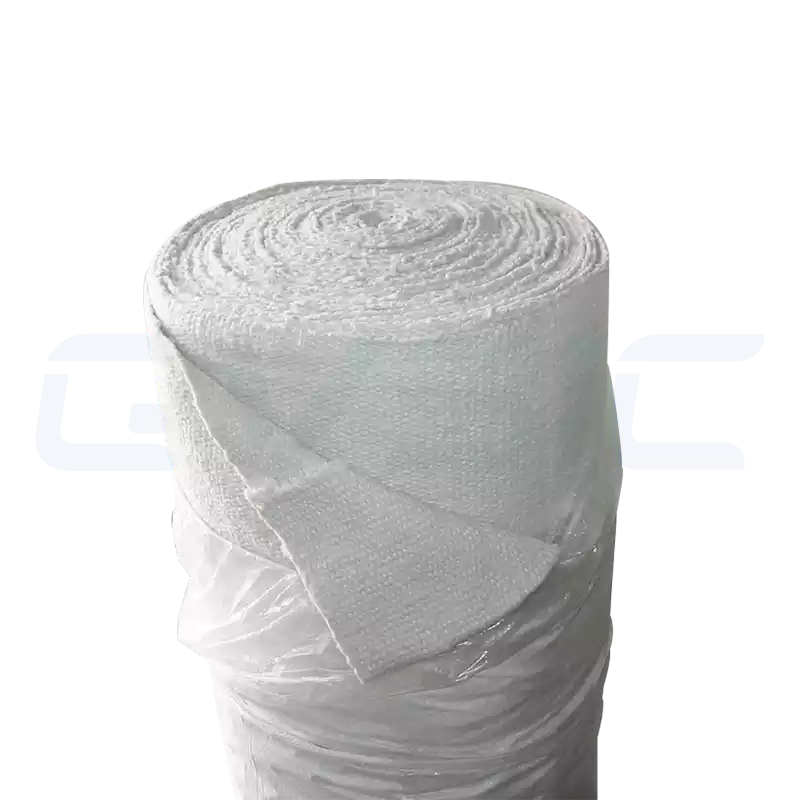

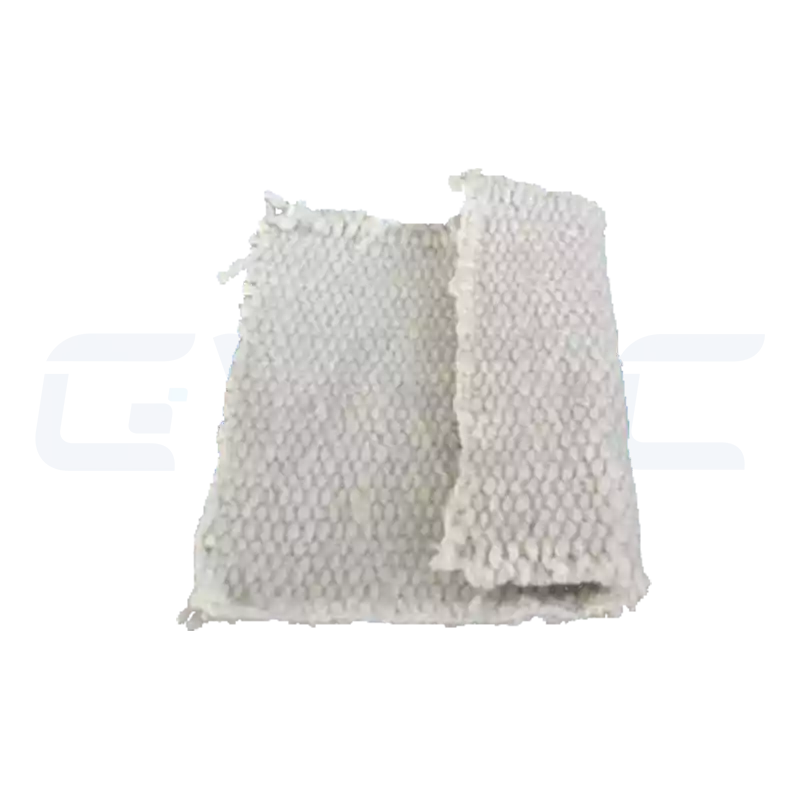

CVSIC Ceramic Fiber Cloth Gallery

Why choose CVSIC ceramic fiber cloth?

• Global supply capability: Supports global wholesale, flexible logistics solutions, ensuring fast delivery.
• Quality assurance: Certified to ISO 9001, products undergo rigorous testing, ensuring stable performance.
• One-stop solution: From custom design to processing support, optimizing your high-temperature insulation and protection systems.
• Brand Trust: CVSIC has earned the trust of global customers with high-quality ceramic fiber products and professional services.

Contact us immediately to obtain customized solutions and quotes for CVSIC ceramic fiber cloth, and optimize your high-temperature insulation and protection applications!
