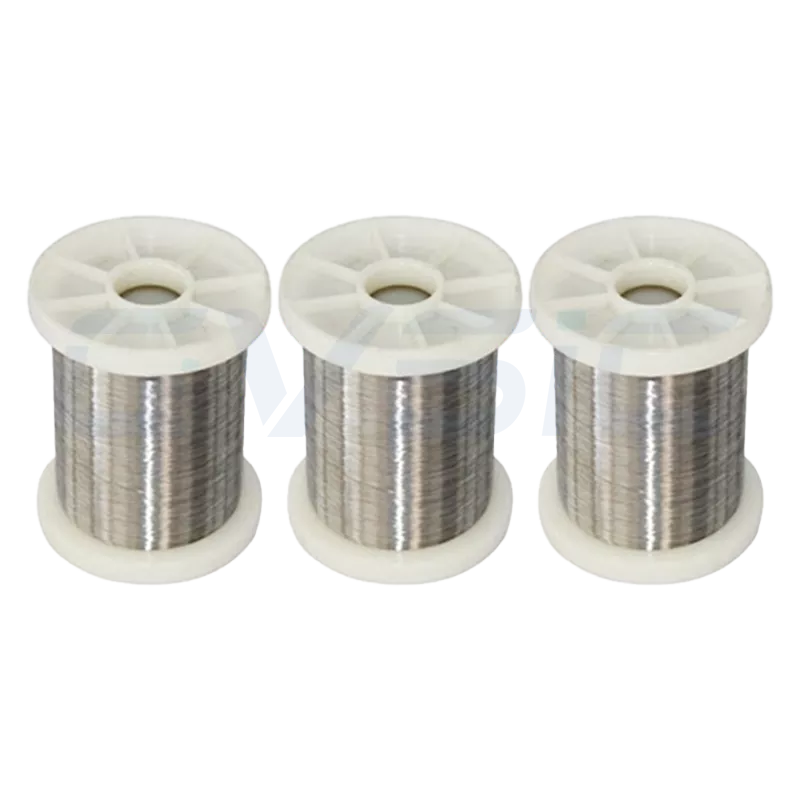

Cr20Ni80 Heating Wire

Cr20Ni80 is a high-nickel NiCr resistance wire with killer high-temp ductility, creep resistance, and long-term stability. All over industrial electric heating systems. We do B2B custom, OEM, and bulk.

Model: CV-Cr20Ni80
Alloy Grade: Ni80Cr20
Main Composition: Ni: Bal., Cr: 20–23, Fe: ≤1%
Max Temp: 1200°C
Resistivity (20°C): 1.09 μΩ·m
Density: 8.4 g/cm³
Forms Available: Diameters: 0.018–10mm; Strips: 0.02–2mm; Custom tolerances
Common Uses: High-temp furnaces, lab gear, ceramic sintering, cutting wires, appliance heaters

Cr20Ni80 is a high-nickel NiCr resistance alloy wire designed for stable, long-term operation in industrial high-temperature electric heating systems.

Contents hide

Typical mix is around 80% nickel (Ni) + 20% chrome (Cr), with engineering focus on:

High nickel → Boosts ductility and creep resistance at heat—great for long continuous heating
Medium chrome → Builds dense Cr₂O₃ oxide layer for better oxidation resistance and life
Steady resistance → Nails temp control accuracy and reliable high-heat runs
Goal isn’t max temp, but long-term stability and reliability when hot.

Standout Features of Cr20Ni80

Super steady long-term in 1000–1150°C runs—resistance barely budges, easy to predict life.
Tough oxidation fight and structure hold: Dense layer sticks strong, rarely flakes even after tons of hot-cold cycles.
Low creep at heat: High nickel keeps deformation down, cuts break risks big time.
Easy to work with: Coils, straightens, shapes no sweat—fits all kinds of tubes and frames.
Batch consistency rocks: Little variation, perfect for big industrial setups.

Cr20Ni80’s big win is high-nickel ductility and low creep—built for non-stop ops, not just peak temps.

Cr20Ni80 Specs Table

Item	Value
Alloy Name	Cr20Ni80
Equivalent	Nichrome 80/20, Ni80Cr20
Common Aliases	Nichrome Wire 80/20, Ni80Cr20
Composition (%)	Ni: Bal., Cr: 20–23, Fe: ≤1%
Max Temp	1200°C (top NiCr)
Resistivity (20°C)	1.09 μΩ·m
Density	8.4 g/cm³
Thermal Conductivity	60.3 KJ/m·h·°C
Expansion Coefficient	18×10⁻⁶/°C
Melting Point	1400°C
Elongation	>20%
Microstructure	Austenitic
Magnetic	Non-magnetic
Standout Traits	Top oxidation, super resistance stability, strongest temp tolerance
Common Uses	High-temp furnaces, lab gear, ceramic sintering, cutting wires, appliance heaters
Available	Diameters: 0.018–10mm; Strips: 0.02–2mm; Custom tolerances

Typical Cr20Ni80 Spots

High-temp industrial furnaces: Wires, strips, meshes for even heat and long reliability.
Non-stop heating systems (24/7): Steady resistance, low maintenance.
Precision heat treat gear: Tight control, low drift—keeps products consistent.
Premium OEM kits: Great for standard long bulk, steady performance.

Usage Tips & Limits

Long-term ≤1100–1150°C: Push higher risks thicker/flaking oxide.

Match loads to wire size: Thin + heavy power ages fast or snaps.

Best oxidizing/neutral air: Reducing/sulfur/carburizing hurts the layer.

Leave expansion room: Tight fixes build stress, break risk.

Frequent fast hot-cold? Drop power/temp—shock weakens layer stick.

Cr20Ni80 Selection Comparison

Feature	Cr15Ni60	Cr20Ni30	Cr20Ni35	Cr20Ni80	Cr30Ni70
Nickel	Medium	Medium-High	High	Super High	High
Chrome	Low	Medium	Medium	Medium	High
Oxidation Fight	Solid	Average	Solid	Excellent	Top-Notch
High-Temp Strength	Average	Solid	Solid	Very Solid	Rock-Solid
Temp Spot	Mid	Mid	Mid-High	High	High
Continuous Life	Medium	Medium	Long	Longer	Longest
Cost	Medium	Medium	Higher	High	Highest

For high-temp long stability, low upkeep, reliability over cheap, Cr20Ni80 gives killer high-nickel continuous value—beats pricier high-nickel/chrome options on cost-performance.

CVSIC Cr20Ni80 Custom Options

Diameters: Common industrial
Forms: Coils, straight, cut-to-length
Extras: Coiling, shaping, pre-fab components
Models: Wholesale, OEM, ODM
Customers: Furnace factories, integrators, engineering firms

Perfect for long bulk and project fits, super batch consistency.

Quality Control & Consistency

Precise high-nickel melt/composition
Resistivity/diameter checks
High-temp aging/oxidation tests
Traceable batches for long projects

Cr20Ni80 NiCr resistance wire is the high-nickel continuous champ in NiCr:

Steady resistance → Spot-on control
High nickel → Low creep, hot break fight
Solid chrome → Oxidation resistance, self-healing layer
B2B custom → Bulk industrial fits

For long stable high-temp non-stop runs and low upkeep, Cr20Ni80 is safe, reliable, and great value.

FAQs

Long-term at 1150°C?

Long-term ≤1100–1150°C with smart loads for life/structure.

Edge over Cr30Ni70?

Higher nickel for better ductility/low creep, but less chrome so slightly weaker oxidation—better cost.

Good for frequent on-off?

Handles some cycles, but fast hot-cold needs lower power/temp.

Reducing air?

Nope—H₂/CO/sulfur hurts protection.

Main uses?

High-temp furnaces, non-stop systems, precision treat, OEM projects.
