Slot type (UX) SiC Heating Element
Slot type SiC Element, Rod, Heater
CVSIC Slot type (UX-Type) Silicon Carbide Heating Element, up to 1625℃, heat- and corrosion-resistant, built for aluminum and zinc melting and high-temperature kilns. We provide bulk orders, custom options, and worldwide delivery—get in touch for top-notch heating solutions!
- Material: High-purity Silicon Carbide (SiC), ≥99% content
- Type: Slot type (UX-Type) SiC Heater
- Power Supply: 110-480V electric
- Manufacturing Process: High-quality SiC billet, high-temperature silicification recrystallization
- Diameter: 12-90mm
- Operating Temperature: Up to 1625°C (2957°F)
- Packaging: Inner carton with foam filling, outer export wooden crate
- After-Sales Service: Global service center support
- Brand: CVSIC
CVSIC Slot type SiC Elements Description
CVSIC Slot type (UX) Silicon Carbide (SiC) Heating Element is crafted from high-purity, high-density SiC crystals with a spiral groove heating section, offering superior heat and corrosion resistance compared to traditional products, ensuring stable performance in harsh environments. Hot zone surface temperature up to 1625°C (2957°F), with a maximum operating temperature of 1625℃, it’s ideal for aluminum and zinc melting and insulation, as well as other high-temperature industrial furnace applications, featuring a long lifespan, low maintenance, and excellent performance.
| Temperature(℃) | Linear Expansion Coefficient (10⁻⁶m/℃) | Thermal Conductivity (Kcal/Mhr℃) | Specific Heat (cal/g℃) |
|---|---|---|---|
| 0 | – | – | 0.148 |
| 300 | 3.8 | – | – |
| 400 | – | – | 0.255 |
| 600 | 4.3 | 14-18 | – |
| 800 | – | – | 0.294 |
| 900 | 4.5 | – | – |
| 1100 | – | 12-16 | – |
| 1200 | 4.8 | – | 0.325 |
| 1300 | – | 10-14 | – |
| 1500 | 5.2 | – | – |
Selected Technical Parameters (at 1000℃):
| Diameter (mm) | Hot Zone Resistance (Ω/mm) | Hot Zone Power (W/mm) | Cold Zone Resistance (Ω/mm) | Cold Zone Power (W/mm) |
|---|---|---|---|---|
| 18 | 0.01938 | 8.48 | 0.00129 | 0.56 |
| 20 | 0.01420 | 9.42 | 0.00095 | 0.63 |
| 25 | 0.00902 | 11.78 | 0.00060 | 0.79 |
| 30 | 0.00615 | 14.13 | 0.00040 | 0.94 |
SiC Heating Elements ResistanceTemperature Performance Graphs
- Density: 2.6-2.8 g/cm³
- Flexural Strength: >300 kg
- Hardness: >9 Mohs
- Tensile Strength: >150 kg/cm³
- Porosity: <30%
- Emissivity: 0.85

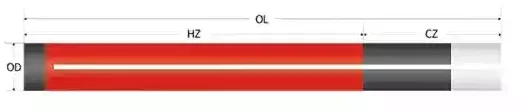

Slot type SiC Heater Ordering Information
When ordering Slot type (UX-Type) Silicon Carbide Heating Elements, please provide the following parameters:
- OD: Outer diameter (mm)
- HZ: Hot zone length (mm)
- CZ: Cold zone length (mm)
- OL: Overall length (mm)
Example: UX-Type, OD=54mm, HZ=1575mm, CZ=419mm, OL=2413mm, Resistance=0.9Ω, marked as: UX-Type/54/1575/2413/0.9
Note: Contact us for other specifications or customization.
Slot type SiC Rod Installation Instructions
To ensure the performance and safety of Slot type (UX-Type) Silicon Carbide Heating Elements, follow these installation steps:
- Inspect Element: Check for cracks or damage before installation, ensuring the spiral groove is intact and undamaged.
- Fixing Device: Use ceramic clamps or dedicated clamping devices to prevent metal contact.
- Power Connection: Compatible with 110-480V power, ensure resistance matching, and use an SCR regulator for precise temperature control.
- Ventilation: Keep the installation area well-ventilated to prevent localized overheating.
- Preheating: Gradually increase power during initial use to avoid thermal shock.
- Regular Maintenance: Inspect wiring and clamping devices to ensure they are secure and free from looseness or corrosion.
Note: Professionals should perform the installation. Download our installation manual for detailed guidance.
Slot type SiC Heater Application Fields
CVSIC Slot type (UX-Type) Silicon Carbide Heating Elements are designed for harsh environments and widely used in:
- Aluminum and Zinc Melting and Insulation: Delivers stable high temperatures for efficient metal melting and insulation processes.
- High-Temperature Industrial Kilns: Ideal for ceramic sintering, glass manufacturing, and other high-temperature heat treatment applications.
- Corrosive Environments: The spiral groove design enhances corrosion resistance, making it ideal for the chemical industry and other demanding conditions.
CVSIC Slot type SiC Heater Product Advantages
- High Corrosion Resistance: Spiral groove design and high-purity SiC material handle harsh acidic and alkaline conditions.
- Superior Heat Resistance: Maximum operating temperature of 1625℃, with hot zone temperatures up to 1600℃, ensuring stable performance.
- Long Lifespan: Resistant to thermal shock and oxidation, reducing replacement frequency and maintenance costs.
- Efficient Heating: High-density SiC crystals ensure rapid heating and uniform heat distribution.
- Global Support: Backed by overseas service centers for fast response and technical guidance.
Slot type SiC Heater Design Recommendations
To optimize the performance of Slot type (UX-Type) Silicon Carbide Heating Elements, follow these suggestions:
- Hot Zone Length: Match the hot zone length to the furnace chamber width to avoid insertion into the furnace wall, preventing ablation.
- Cold Zone Length: The cold zone length should match the furnace wall thickness, plus an additional 50-150mm for accessory connections.
- Furnace Aperture: The furnace aperture should be 1.4-1.6 times the cold end diameter to allow free expansion and prevent breakage.
- Spacing Design: Maintain a distance of ≥3 times the outer diameter between the element and materials or furnace walls and ≥4 times the outer diameter between element centers for optimal heat distribution.
- Temperature Control System: Pair with a PID controller for precise temperature control, thereby extending the lifespan of the element.
- Spiral Groove Protection: Avoid mechanical damage to the spiral groove during installation and operation to maintain corrosion resistance.
CVSIC Slot type SiC Heater Customization Services
CVSIC offers flexible customization for Slot type (UX-Type) Silicon Carbide Heating Elements:
- Size Customization: Adjust outer diameter and hot/cold zone lengths to fit your furnace design.
- Resistance Optimization: Customize resistance to match 110-480V power configurations.
- Special Coatings: Provide anti-oxidation or corrosion-resistant coatings for enhanced performance in harsh environments.
- Bulk Supply: Support large-scale wholesale with fast delivery and consistent quality.
- Technical Support: Offer engineer guidance and heat distribution analysis from selection to installation.
Contact us for customized solutions or free technical consultation!
Slot Type SiC Elements Accessories
